This project has some tricks, modelling a 3d frame inside the non-geometric dinosaur head is quite challenging, and then also making the fabrication drawings is a tough process.
CAD Design
Fabrication
Drafting
Design of Ramp balustrades and handrails. Australian standard 1428.1
cad-design
fabrication
drafting
balustrade
handrails

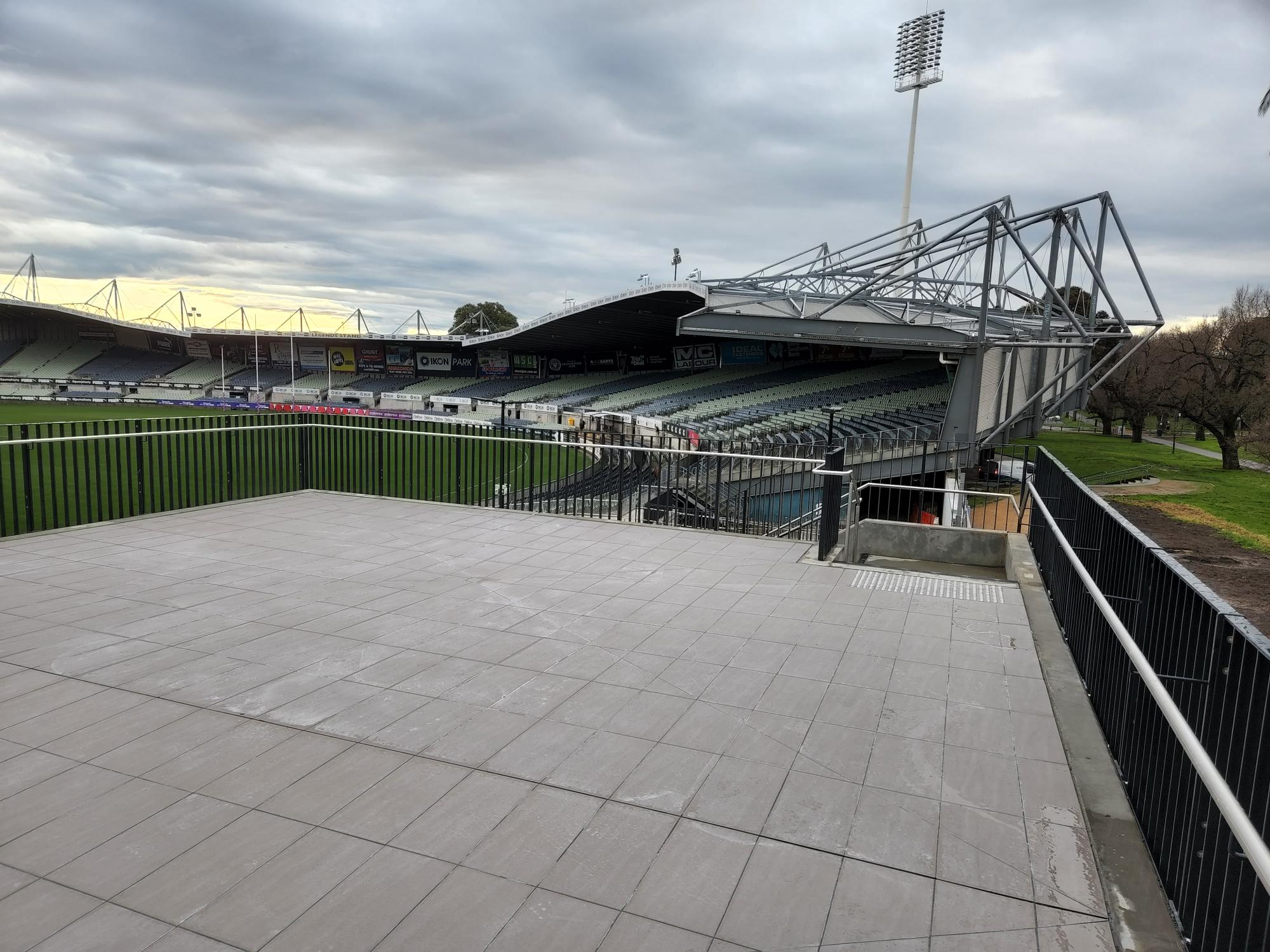

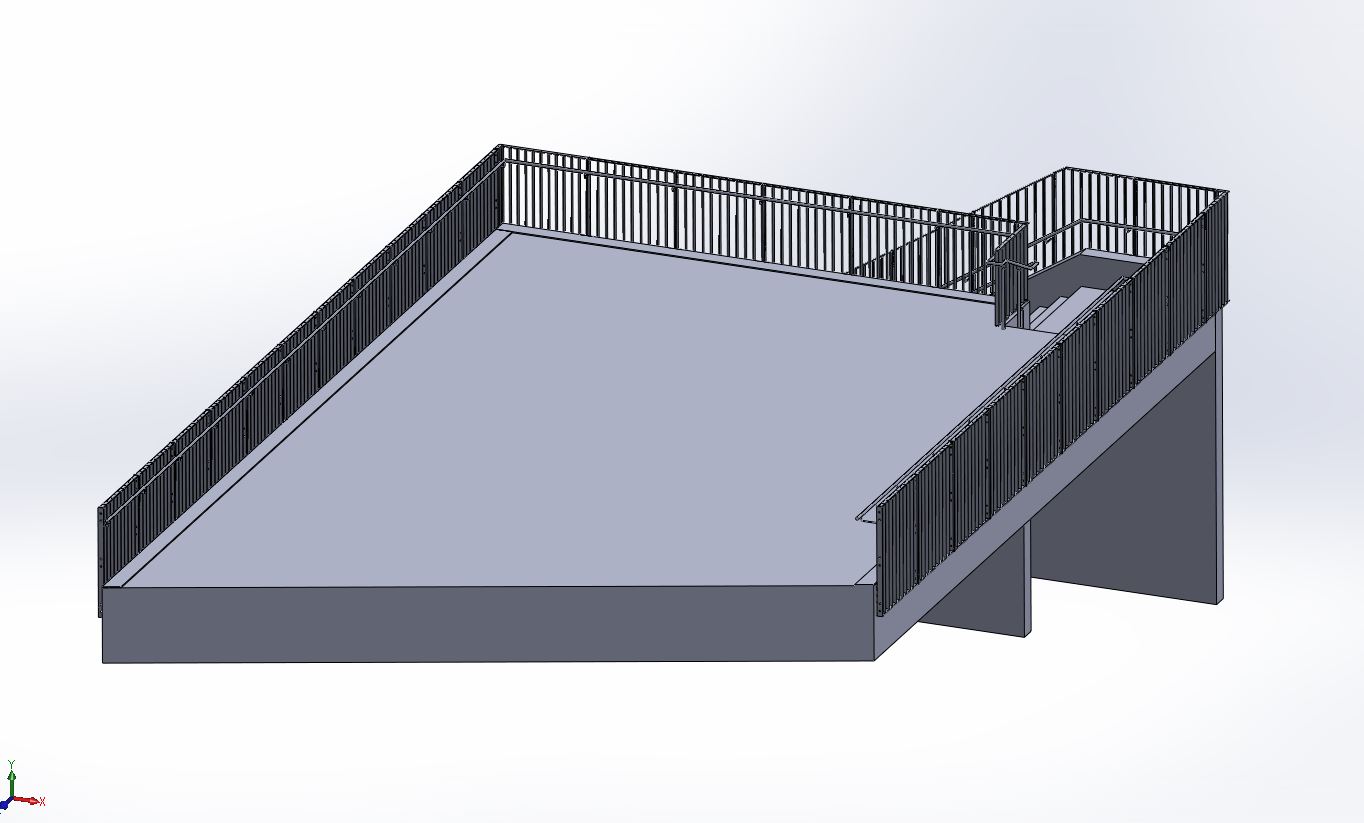

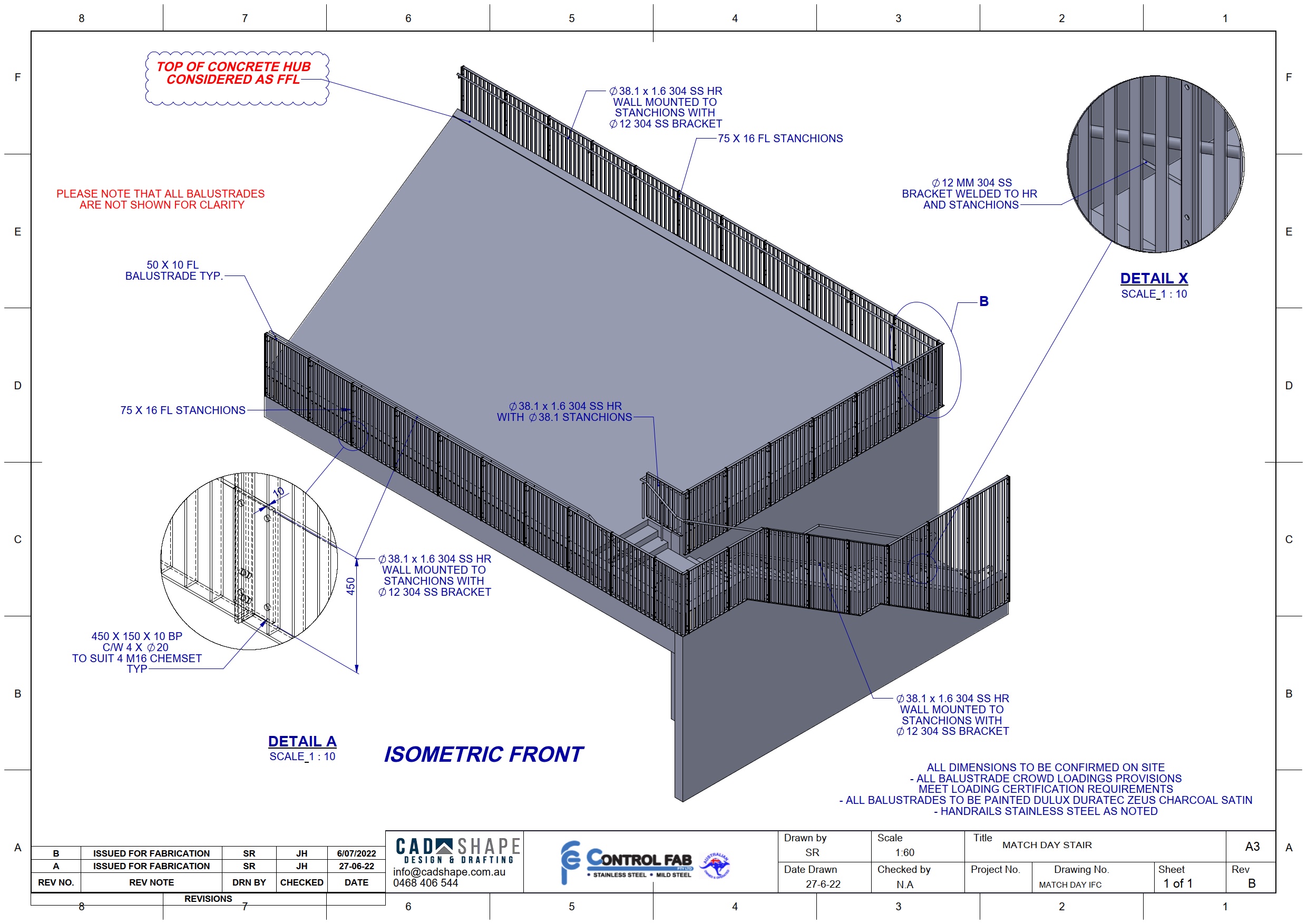

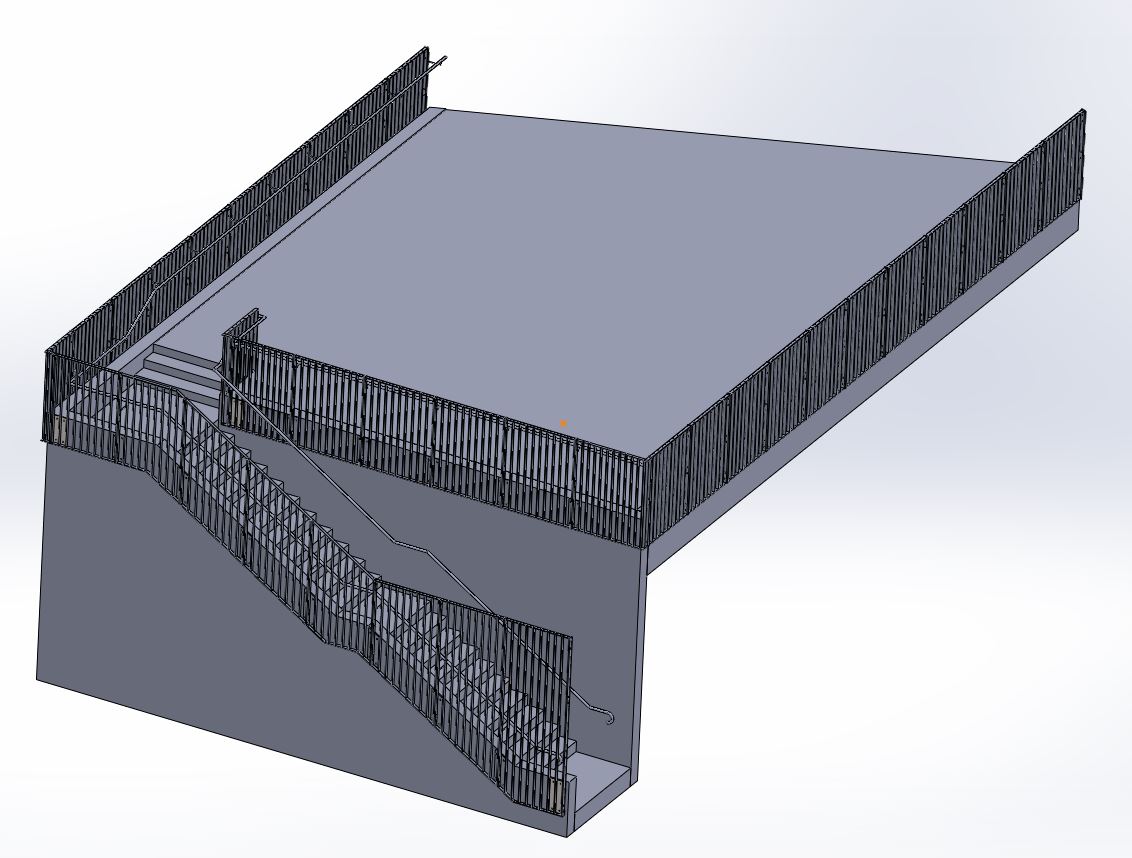

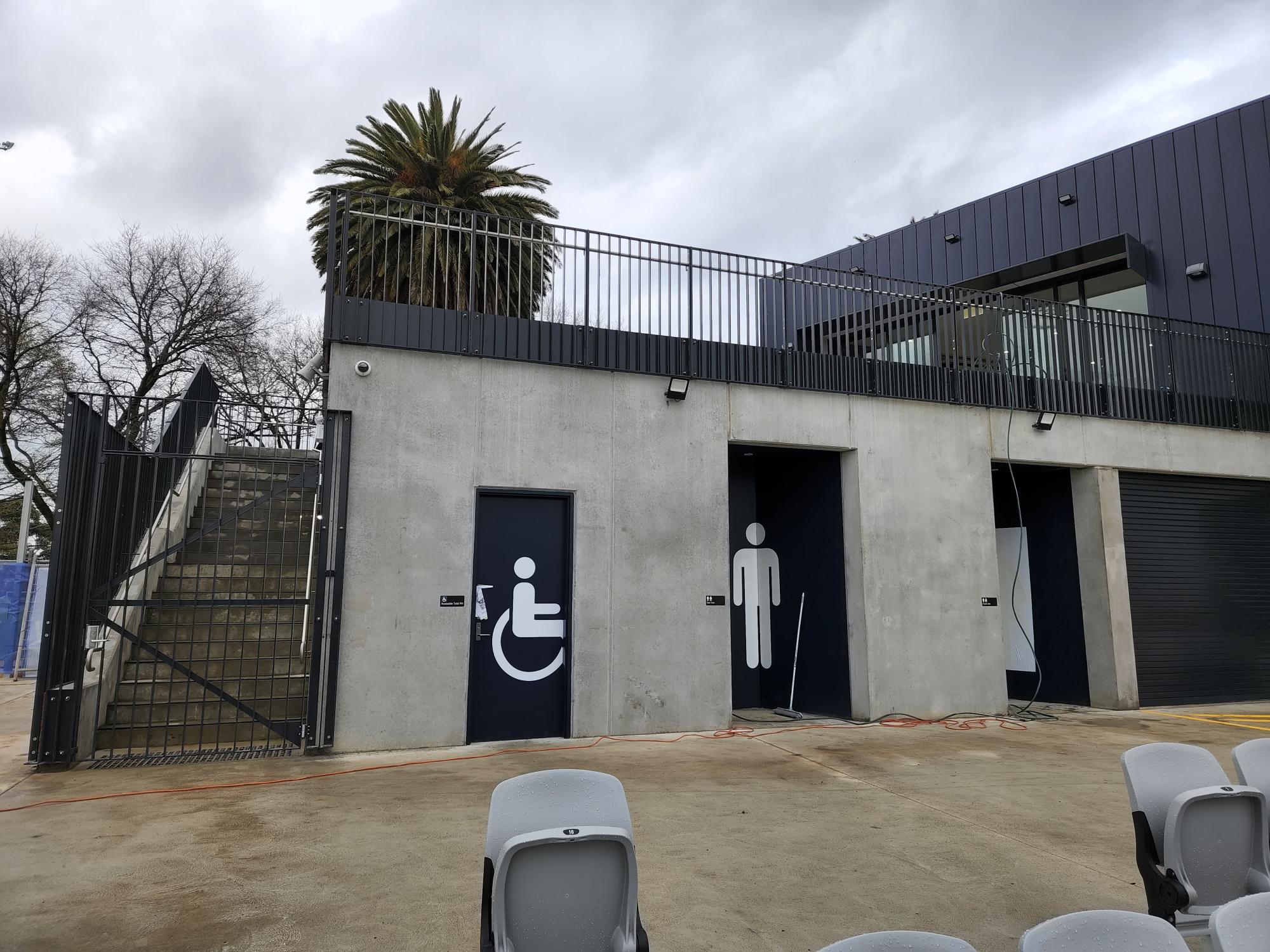

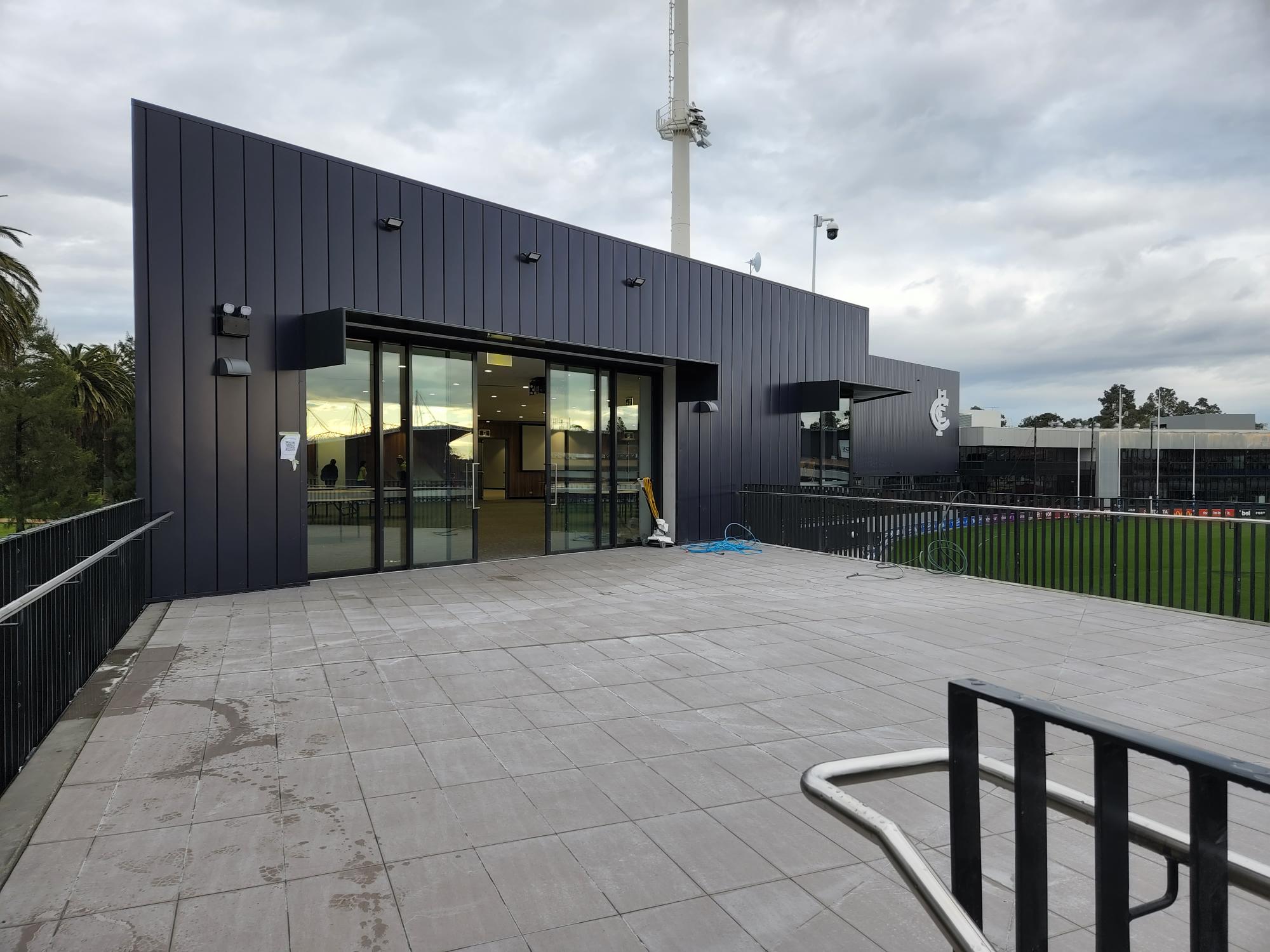

Design of balustrades and handrails. Australian standard 1428.1.
cad-design
fabrication
drafting
balustrade
handrails

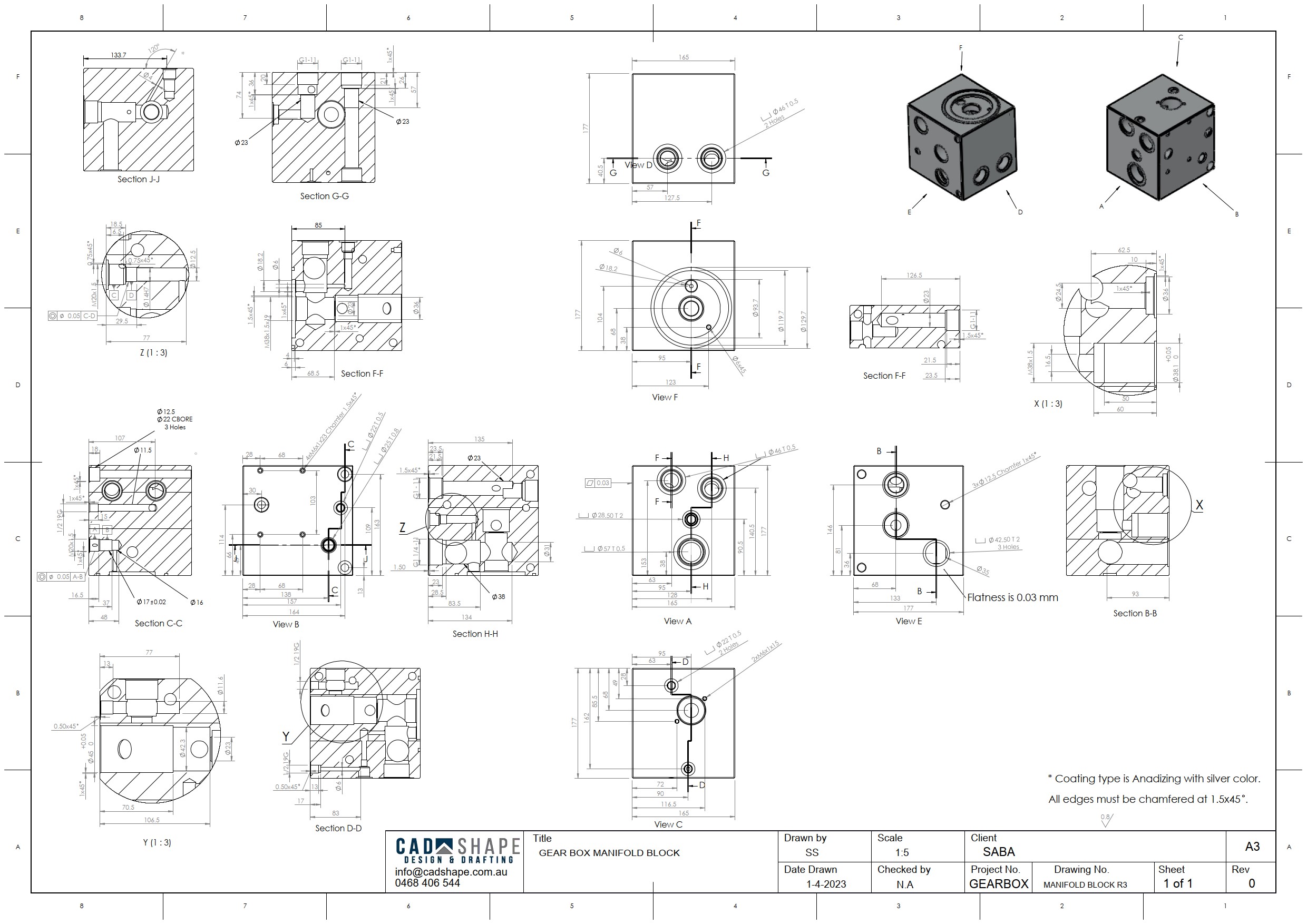

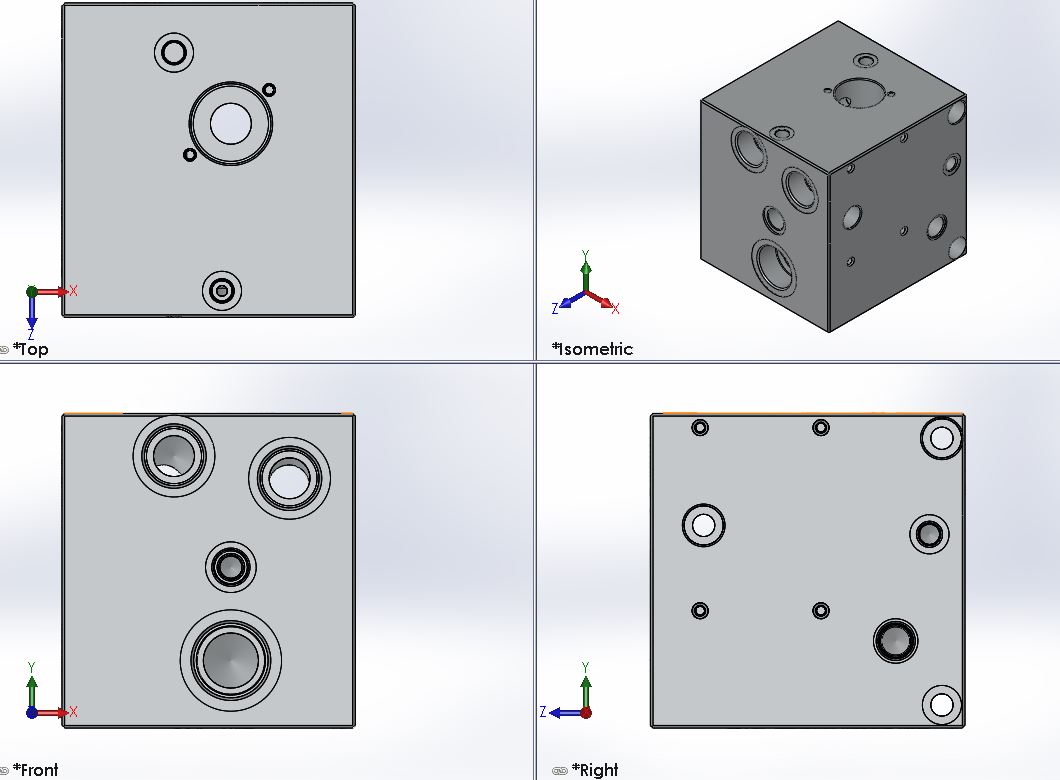

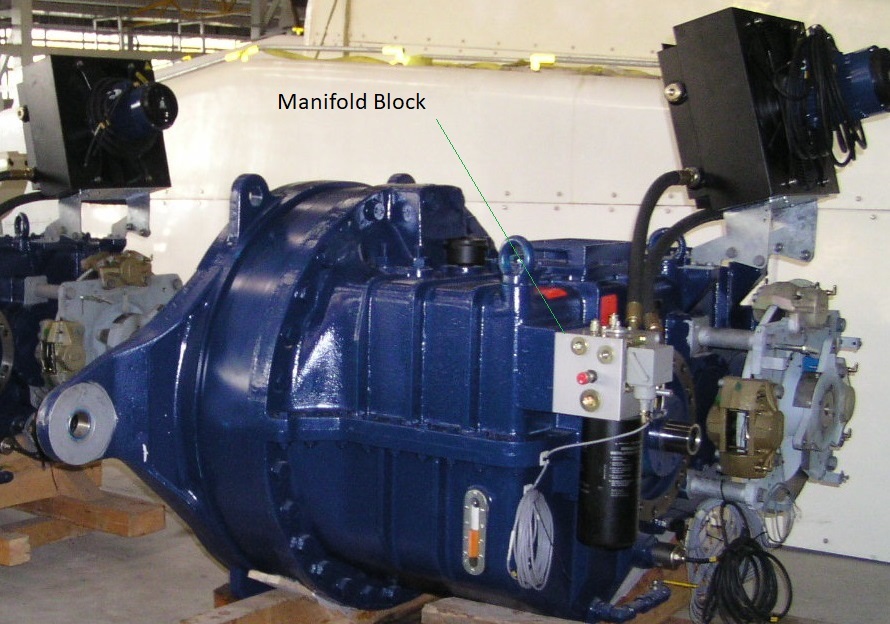

Design and drawing of manifold block for wind turbine gearbox. Including all geometric tolerances.
cad-design
fabrication
drafting
reverse engineering

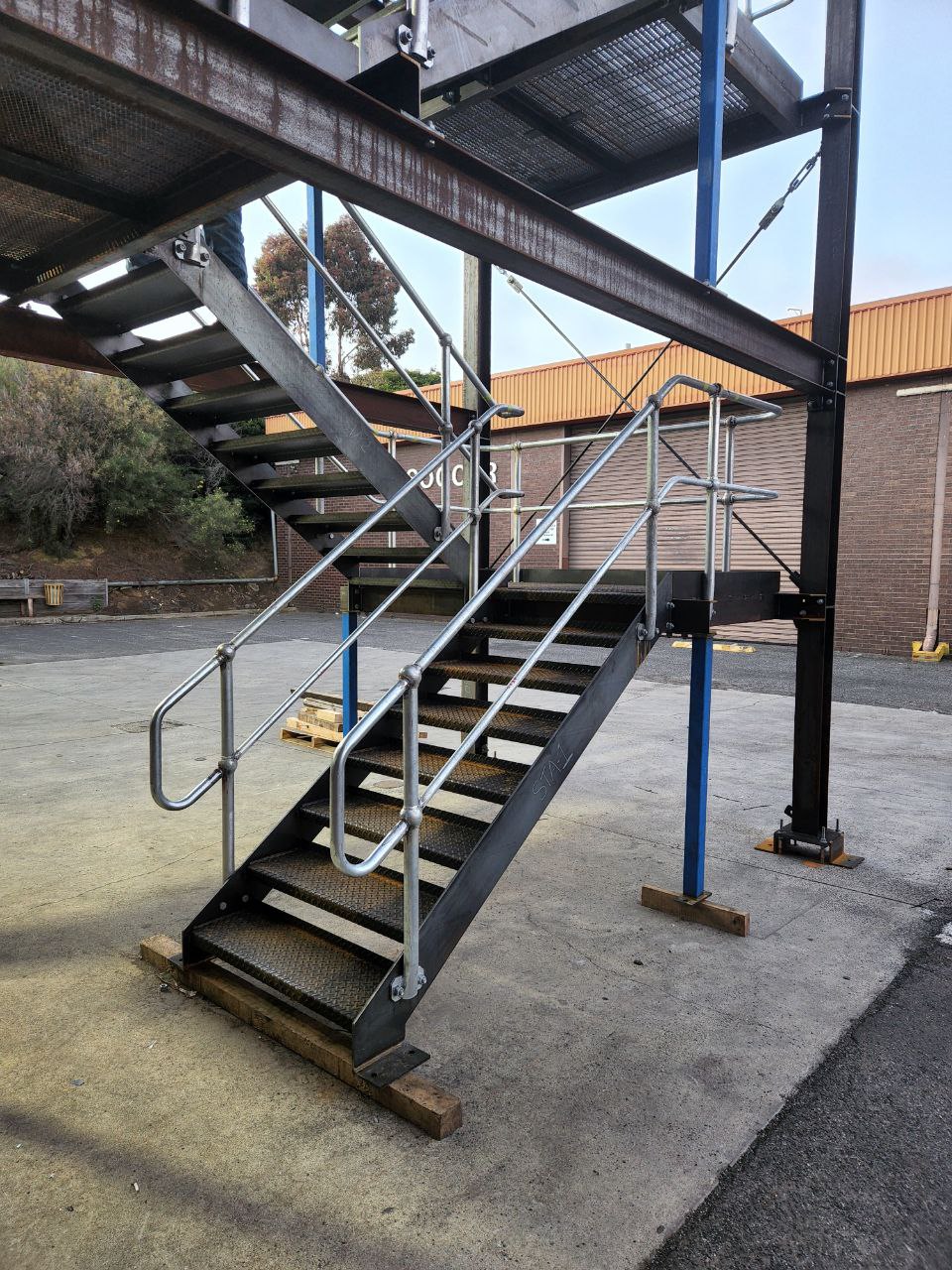

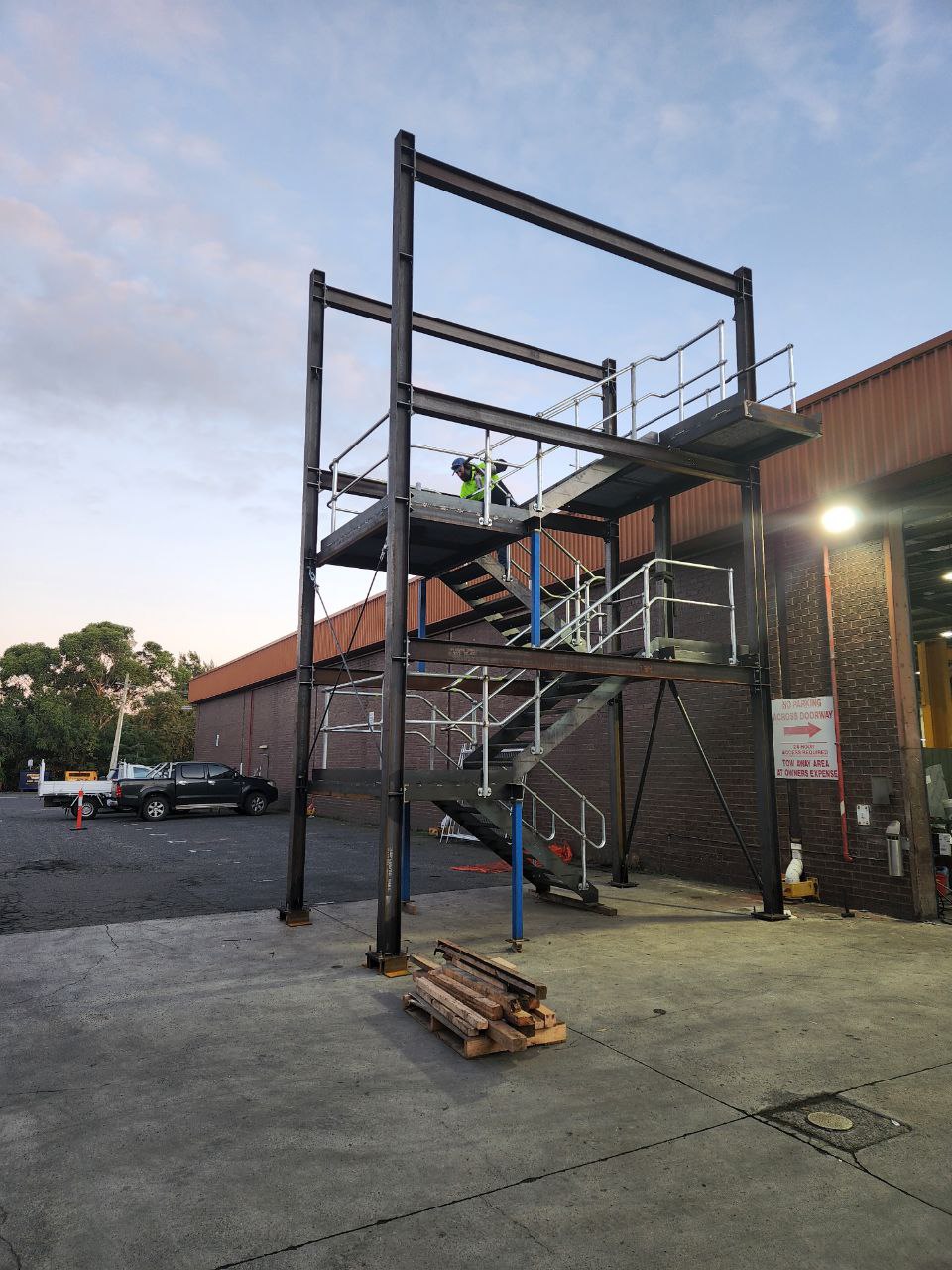

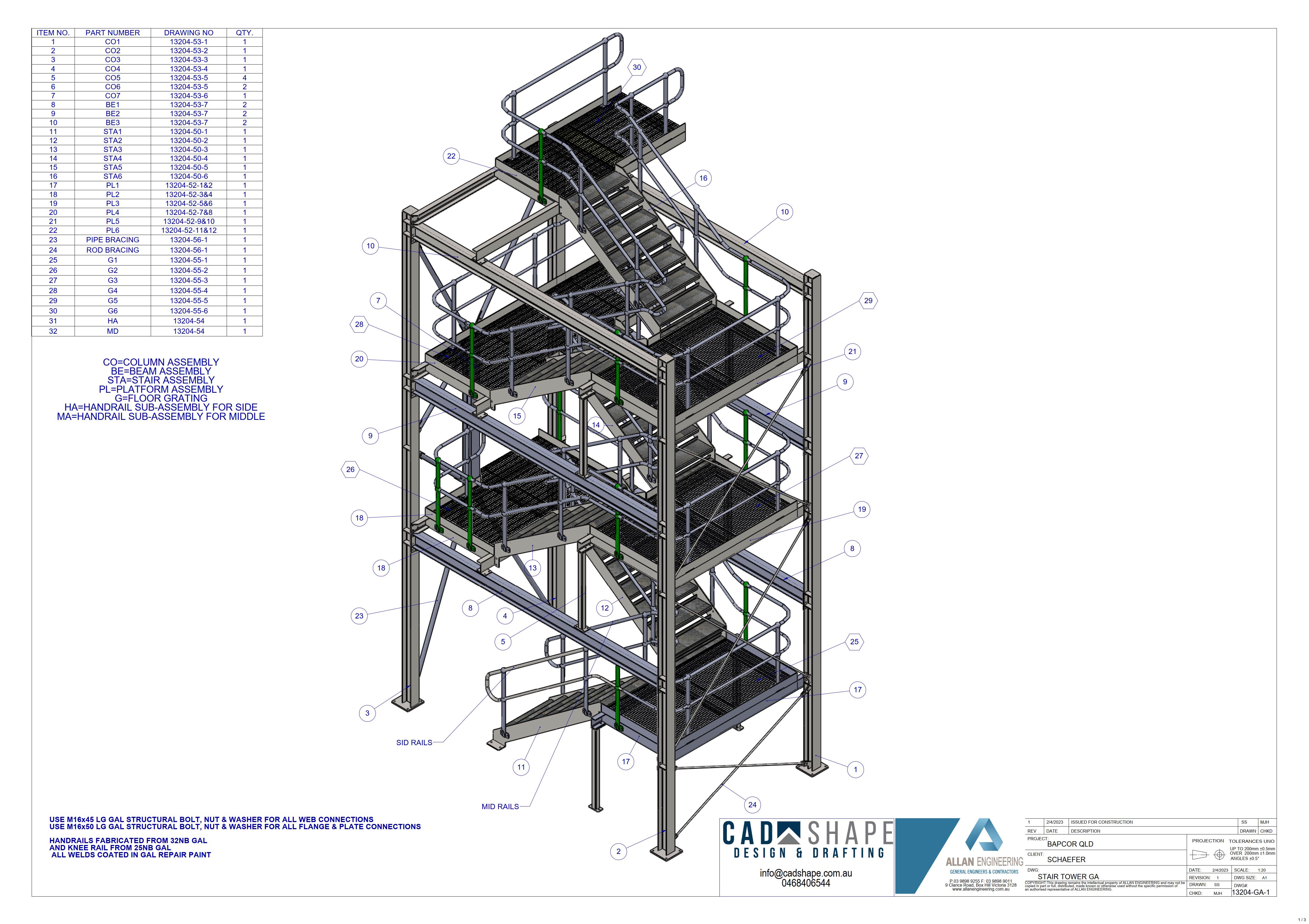

Full fabrication drawings. This project has some challenges due to its site condition, stairs and handrails are different. Design of stairs and handrails complies with AS 1657:2018.
cad-design
fabrication
drafting
handrail
balustrade
grating
